Import & Export

Importing Projects

Milestone can import project data from external tools:

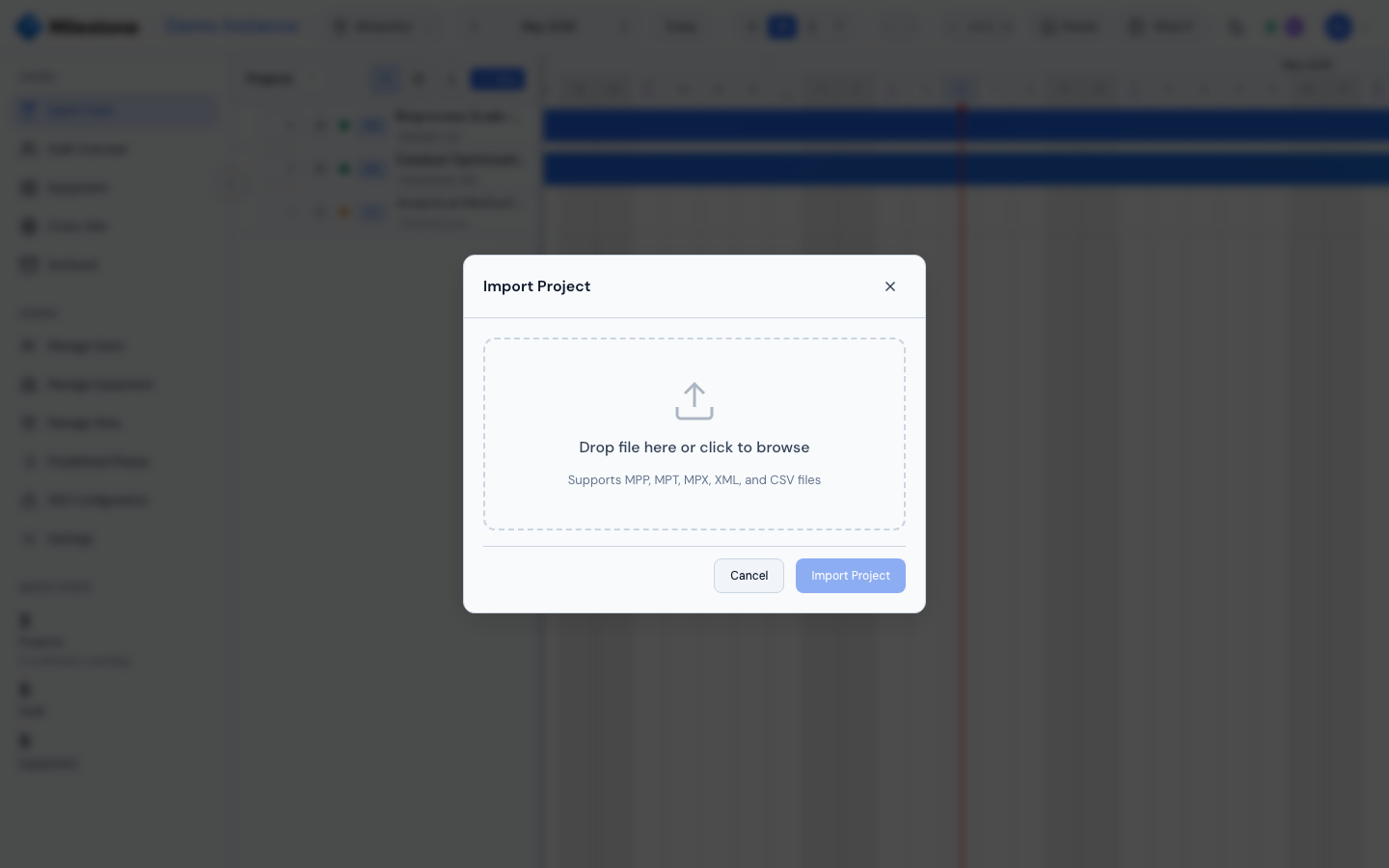

1. Click Import in the project panel header
2. Drag-and-drop or browse to select a file:
3. CSV — Comma-separated values with columns for project name, phases, dates
4. XML — Microsoft Project XML format (.xml)
5. MPP/MPT/MPX — Microsoft Project native format (requires Java on the server)
6. Milestone parses the file and shows a preview
7. Click Import Project to create the project with all phases and subphases

After import, a summary shows the created project, phase count, and subphase count.

Note

MPP/MPT/MPX file import requires Java to be installed on the server (included in the Docker image). CSV and XML imports work without Java.

Exporting Projects

To export a project:

1. Open the project edit modal (click Edit or right-click then Edit)
2. At the bottom of the modal, two export buttons are available:
3. CSV Export — Compatible with Microsoft Project and spreadsheet tools
4. XML Export — Microsoft Project XML format

The exported file includes the project hierarchy (phases, subphases), dates, assignments, and custom column values.
